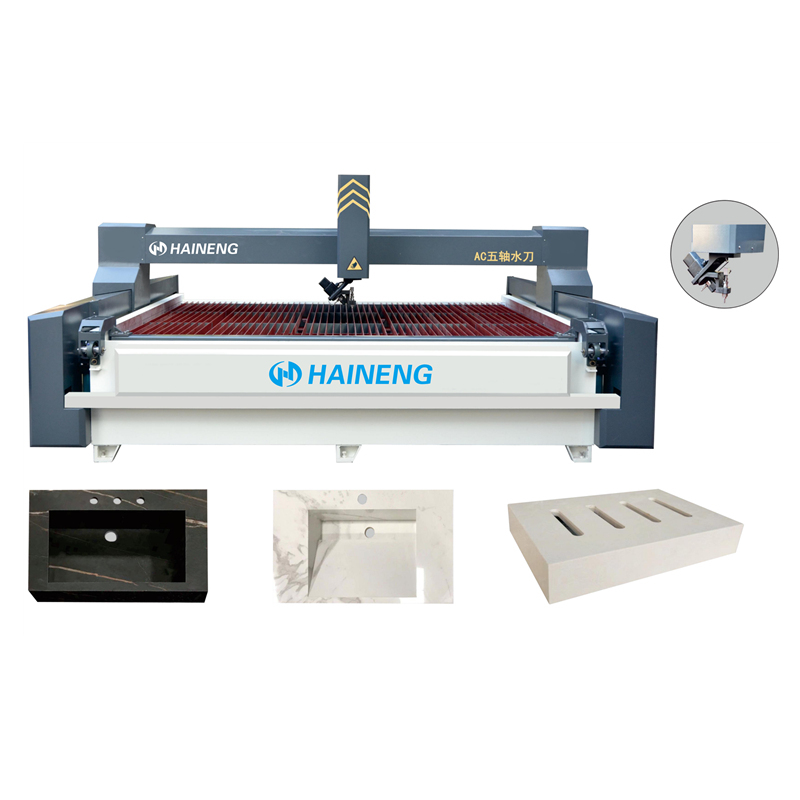

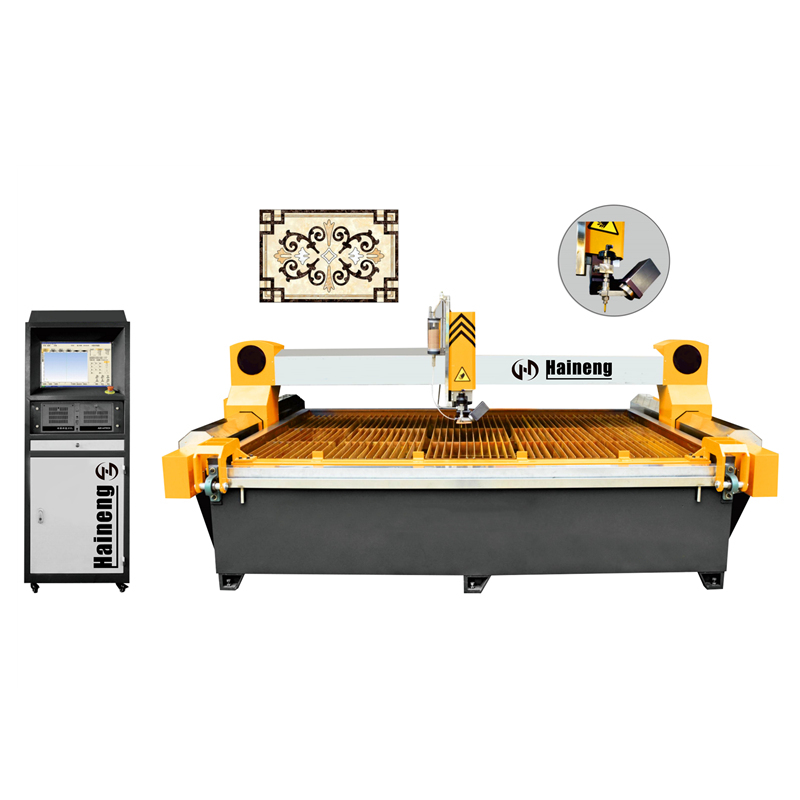

Stone Crafts Marble Mosaic CNC 5 Axis Water Jet Cutting Machine
5 Axis Waterjet Machine is an effective tool for any shape of artistic creation. CNC water jet cutter can cut any shape of models under the control of the CNC program.
Item No. :
SKSD-1515
SKSD-2515
SKSD-3020
SKSD-4020
- Haineng
- Fujian
- 25 days
- 15 PCS per month
- Information
- Video
Stone Crafts Marble Pattern Mosaic 5 Axis Water Jet Cutting Machine
Product Introduction
5 Axis CNC Waterjet Cutting Machine is an effective tool for any shape of artistic creation.CNC Water Jet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble,glass, etc.The screw and guide rail are utilized by well-known brands. Unique oildip lubrication is applied for X and Y axis. The special waterproofand dirt-proof structures can ensure better processing accuracy and stability. It can also prolong the life of screw and guide rail furthest.
Technical Parameters
Machine Type | 1515 | 2015 | 2515 | 3020 | 4020 | ||
| Machine Structure | Gantry Type | |||||
Internal size of water tank（mm） | 1500×1500 | 2000×1500 | 2500×1500 | 3000×2000 | 4000×2000 | ||
Overall size (mm) | 2700×2300 | 3200×2300 | 3700×2300 | 4200×2800 | 5200×2800 | ||
3 Axis | cutting size（mm） | 1500×1500 | 2000×1500 | 2500×1500 | 2500×1500 | 2500×1500 | |
Z-Axis travel | 150mm | ||||||
5 Axis AB | cutting size (mm） | 1450×1450 | 1950×1450 | 2450×1450 | 2950×1950 | 3950×1950 | |
Rotation angle | 0-10° | ||||||
Z-Axis travel | 120mm | ||||||
5 Axis AC | cutting size（mm） |
|
|
| 2700×1900 | 3700×1900 | |
Rotation angle | ±59° | ||||||
Laser sensor | Configure laser sensors, with optional probe functionality | ||||||
Z-Axis travel | 90mm | ||||||
Cutting accuracy | ±0.1mm（Cutting tolerance is 0.2mm without deformation of the cut material） | ||||||
Cutting speed | 0.50-3.5 m/ min （Depends on the material） | ||||||
X-axis and Y-axis no-load running speed | 0-6000 mm/min | ||||||
Z-axis no-load running speed | 0-200 mm/min | ||||||
Internal diameter of sand pipe | 0.5-1.02mm | ||||||
Gemstone diameter | 0.1-0.33mm | ||||||
Longitudinal beams and cross beams | 45#Square tube welding
| ||||||
Screw rod, guide rail | Oil-filled | ||||||
Sand casting method | Self-priming sand removal | ||||||
Processing
