Stone Quarry Chain Saw Cutting Machine For Granite Marble

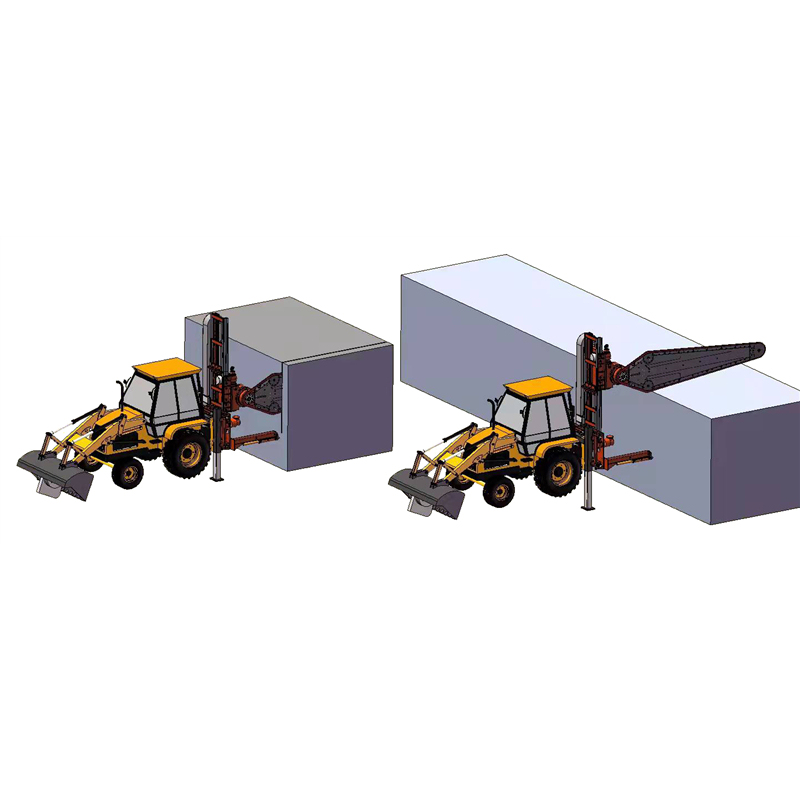

This chain saw is composed of a cutting system mounted on a wheel loader.
The machine is self-contained, quickly moving and positioning in front of the block or to the bench to be cut.
There is no need to prepare an area reserved to the squaring of the blocks in the quarry, as the machine can easily and quickly reach the blocks to be cut.
It can work in dry conditions, without using any water to cool the cutting tools.
The operator can use a wireless control for all the functions of the machine, which can be used either inside the heated/air-conditioned control cabin or outside the machine.
Item No.:LZLJ3400

  • HAINENG
  • CHINA
  • Information

Product Introduction

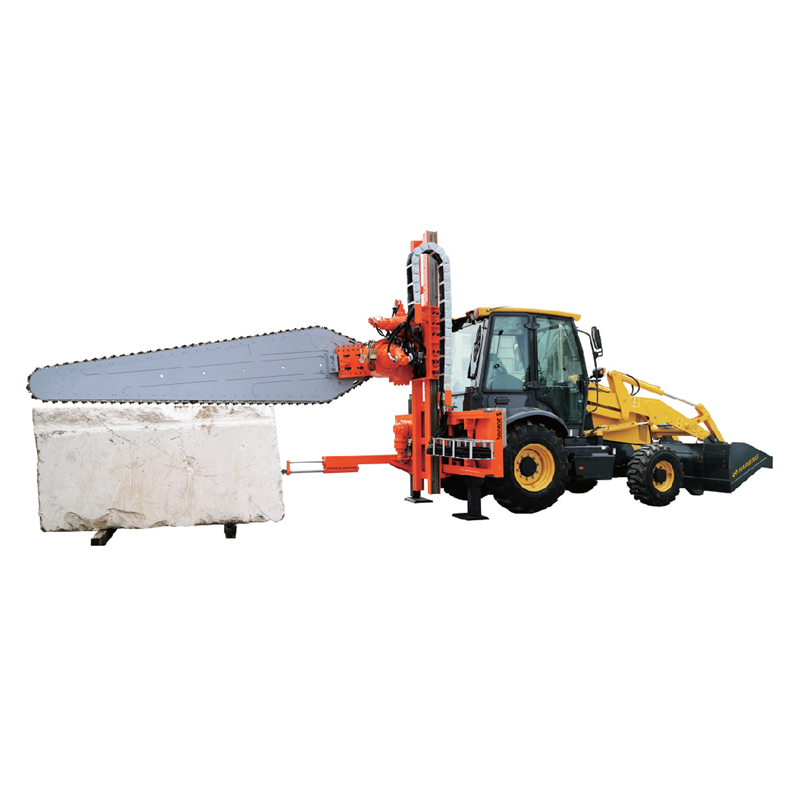

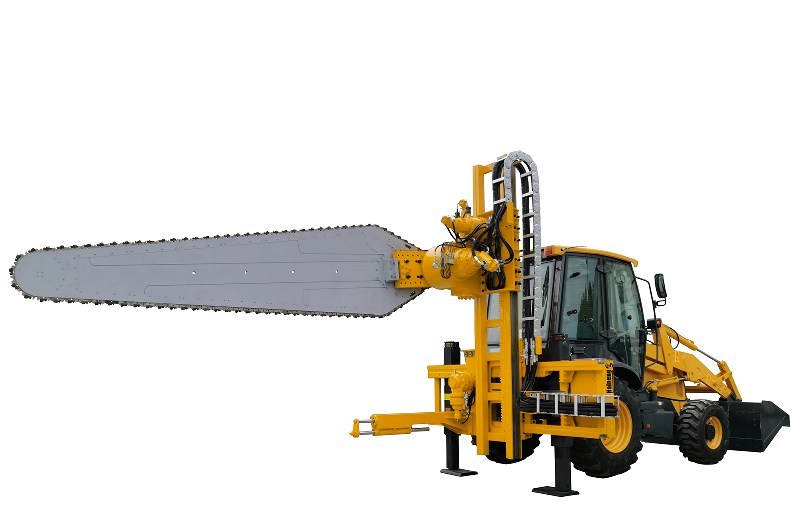

SMT-CS3400 Chain Saw For Wheel Loader consists of chain arm cutting system and wheel loader , mainly used for cuting large blocks and cutting strip ore belt in mine , its features are :

1. This machine is powered by the diesel engine of the wheel loader , which can work independently without external power supply.

2. Mining operators work in the sealed cab in a friendly and safe working environment .

3. The machine can move fast and operate conveniently with high eficiency .

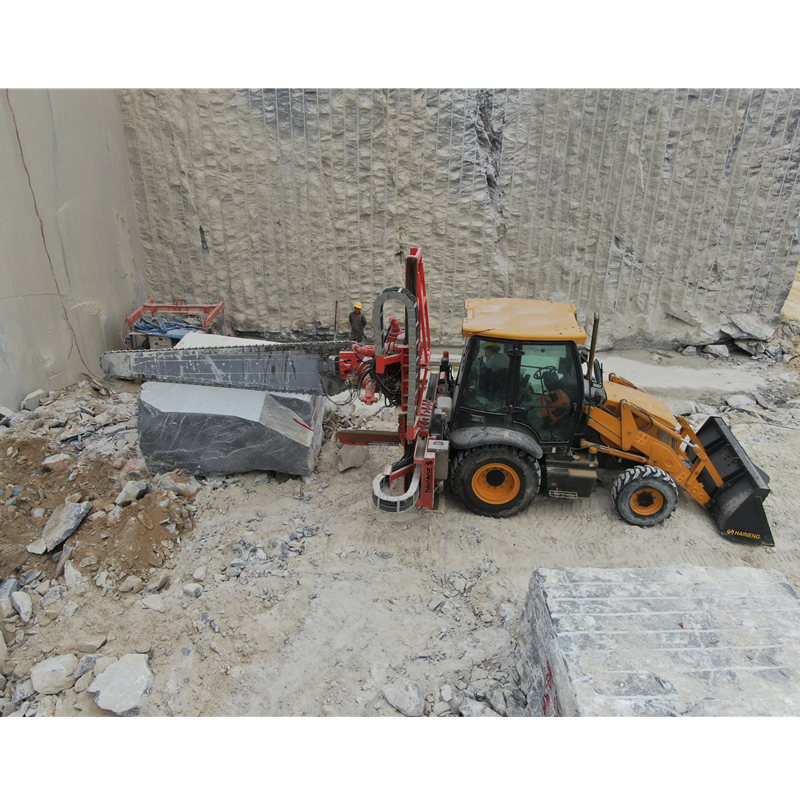

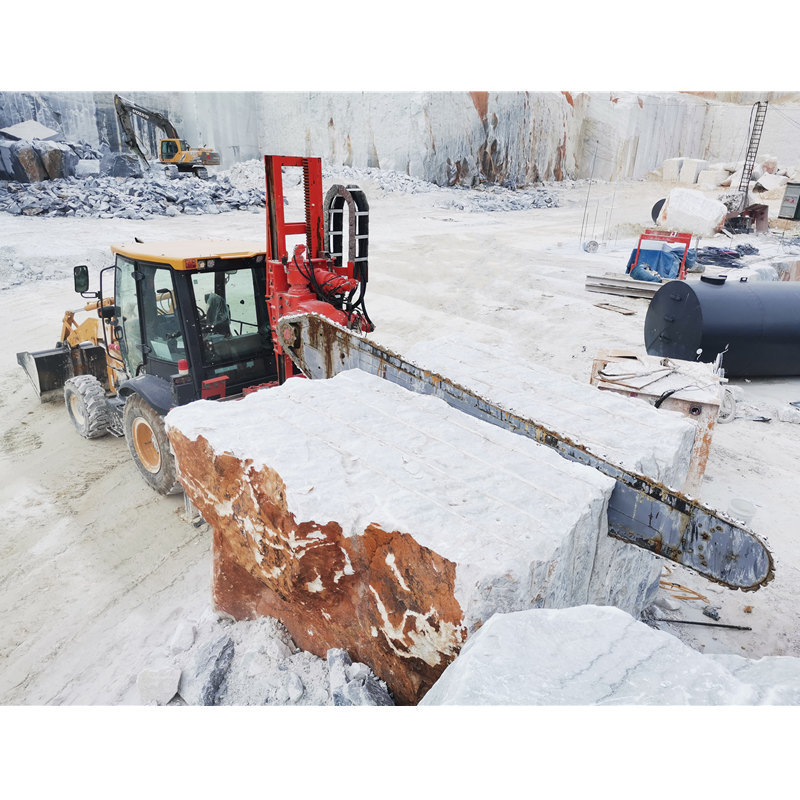

Chain saw for stone quarry

Technical Parameters

Chain saw for wheel loader

Model

Unit

LZLJ3400

Available lenghts of arm(Useful cut)

m

Da/from 2m-a/to 3.40m

Arm rotation

n°

90

Vertical stroke

mm

3000

Horizontal stroke

mm

2000

Weight of cutting unit

kg

3800

Cut width

mm

40

Grease tank capacity

kg

30

Grease capacity

Kg/h

0.3-1

Diesel comsumption

L/h

7-10

Round per minutes of the chain rotation pinion

rpm

65

Round per minutes of the diesel engine

rpm

1400-1500

Rear gear movement maximum slope



21%

Total power

kw

74.5

Total weight, including wheel loader

kg

11000

Chain saw for wheel loader

Processing

Stone extraction chain saw machines
