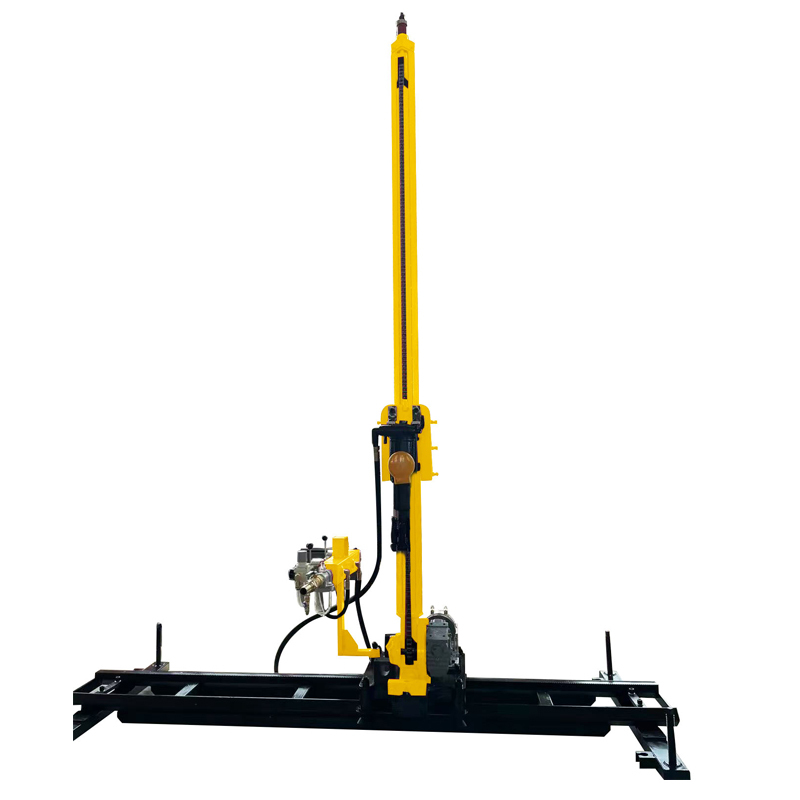

Single Hammer Pneumatic Rock Drill
Multifunctional Rock driller is mainly used in quarrying, available for horizontal, vertical, and slantwise drilling .
Item No.: YT29A
- Haineng
- Fujian
- 25 days
- Information
Product Introduction

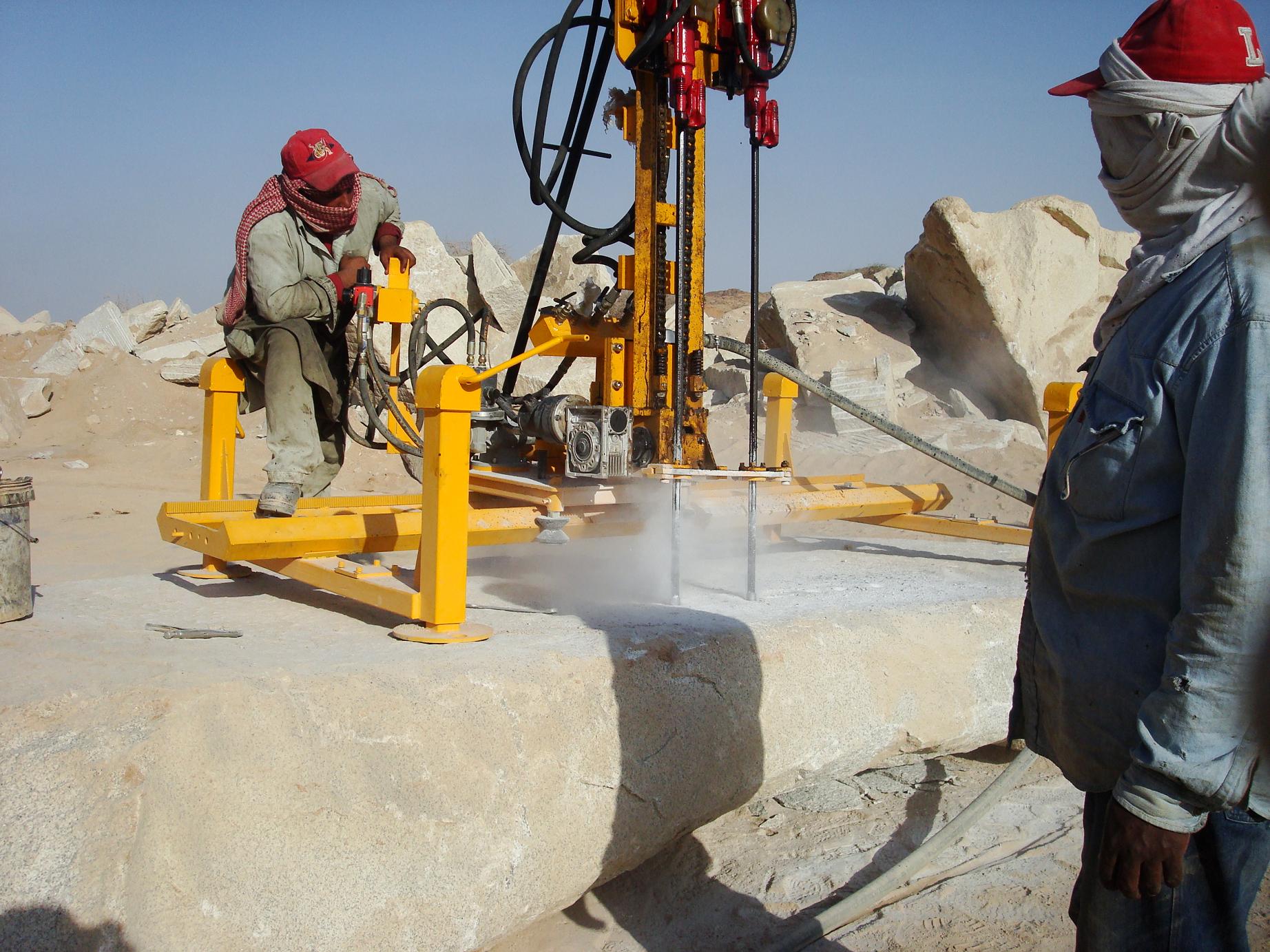

Multifunctional Rock driller is mainly used in quarrying, available for horizontal, vertical, and slantwise drilling . And used for dividing large blocks into smaller ones.
Technical Parameters
Driller Code | Single Hammer Rock Driller for Vertical and Horizontal Drilling | Two-Hammer Rock Driller for Horizontal Drilling | Four Hammer Rock Driller for Horizontal Drilling |
Hammer | YT29A | 2-YT29A | 4-YT29A |
rated track length | 2*3m | 2*3m | 2*3m |
max.drilling depth | 1-8m | 1-8m | 1-8m |
drilling diameter | 34mm-42mm | 34mm-42mm | 34mm-42mm |
minimum air pressure | 0.6MPa | 0.6MPa | 0.7MPa |
drilling speed | 30m/h | 30m/h | 30m/h |
total compressed air consumption | 7-9m³/min | 10-12m³/min | 18-20m³/min |
Advance power | 1.5kw | 3kw | 6kw |
track travel | 3m | 3m | 3m |
Single advance | 2m | 2m*2 | 2m*4 |
Feed System | Pneumatic motor, chain | Pneumatic motor, chain | Pneumatic motor, chain |
cross travel device | Hand wheel, gear, rack | Handwheel, gear, rack | Handwheel,gear,rack |
drilling direction | Any direction | Any direction | Any direction |
number of the hammer | 1 | 2 | 4 |
total weight | 500kg | 1000kg | 1200(kg) |

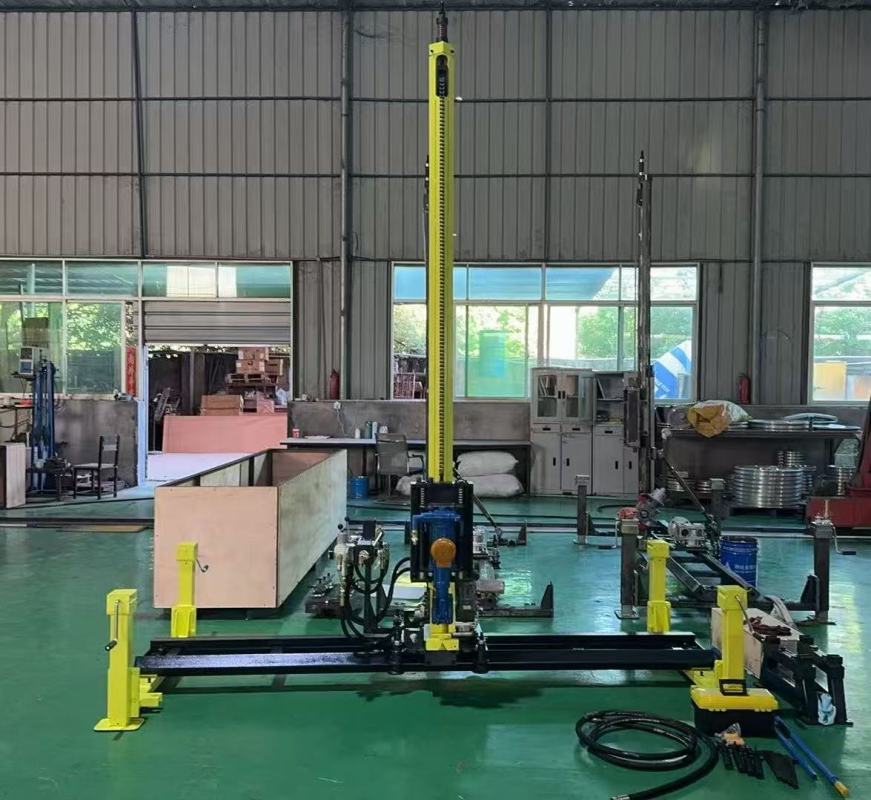

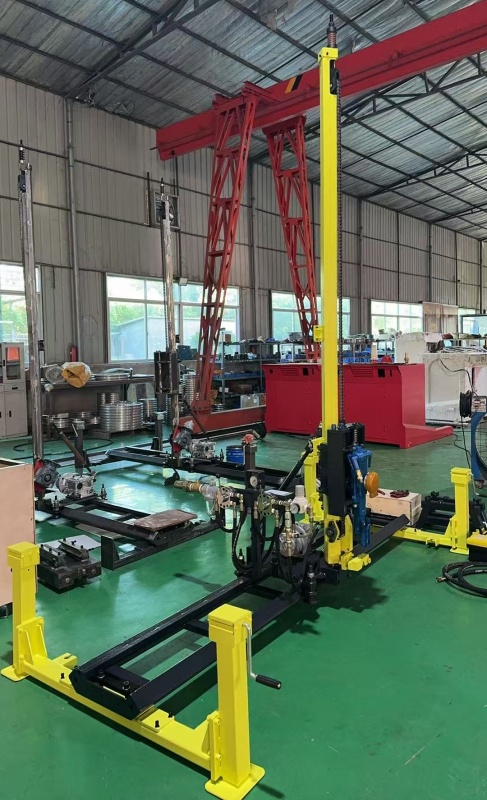

Processing

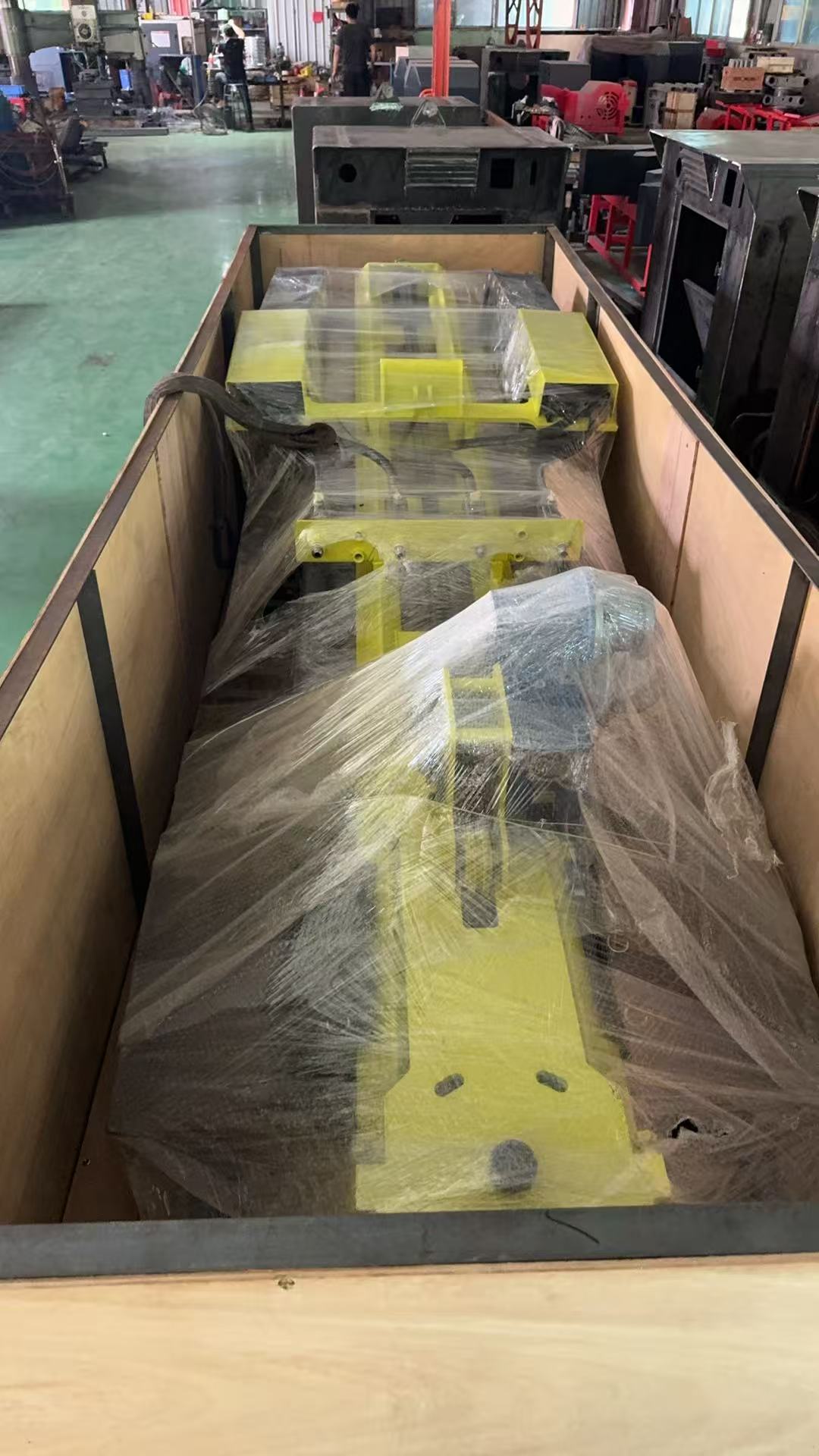

Loading
