Fully Automatic Multifunctional Special-Shaped Stone Engraving Machine
Split Type Special-Shaped Stone Engraving Machine with latest system, efficient and stable.
Item No.: YXDK-FT3040-2
- Haineng
- Fujian
- 25 days
- 15 PCS per month
- Information
- Video

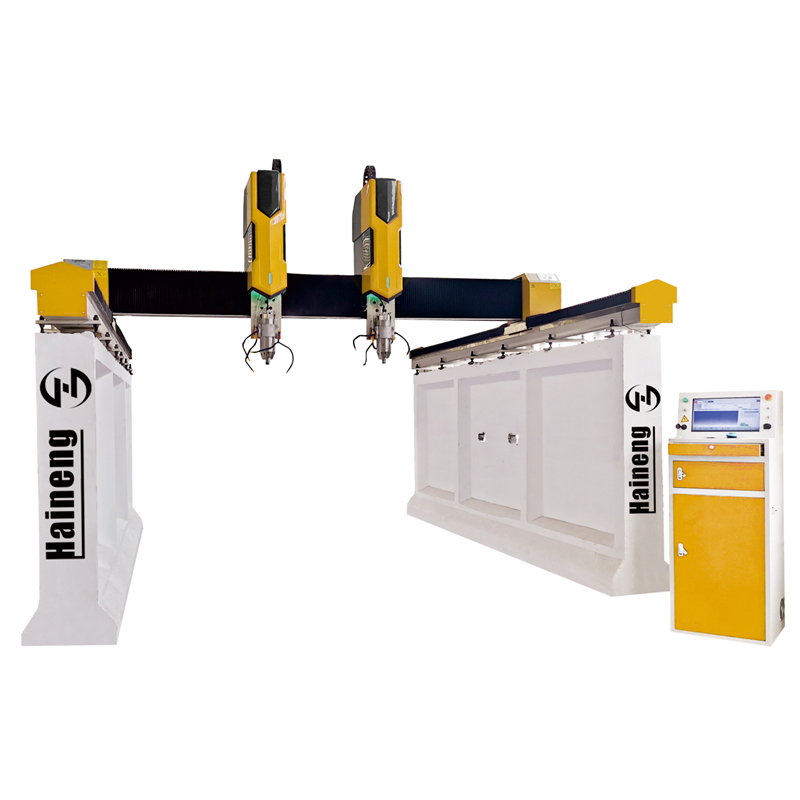

Split Type Special-Shaped Stone Engraving Machine
Product Introduction
Performance characteristics
1. The latest system, efficient and stable
2. X, Y axis 30 rails, Y axis double rails
3. XY reducer drive, Z-axis with brake function
4. Various models, large size and inner size, easy loading and unloading.
5. Suitable for various large-scale products such as building materials.
6. ancient building, gardens, etc.
Technical Parameters
Technical parameters | |
Equipment model | YXDK-FT3040-2 |
Dimensions | 4200x 5000x 2800mm |
Processing size | X: 3000mm Y: 4000mm Z: 500mm |
Feed height | ≤2000/ 1400mm (Customizable) |
Spindle power | 5.5KW *2 |
Inverter | 5.5KW *2 |
Drive system | Servo |
Control system | Weihong Ncstudio NC60 series |
Ball Screw System | 2505, TBI-Taiwan, Ball screw |
Rack | Precision helical gear drive-Taiwan Brand |
Travelling rail | X/Y 30, Z 25 linear guide rail |
Ball Screw System | 2505, TBI-Taiwan, Ball screw |
Motor | AC SERVO-Fully servo |
Cooling System | Water-cooling |
Spindle speed | 18000-24000 rpm |
Lubrication system | Automatic oil filling system |
Dust protection | Fully enclosed |
Processing
