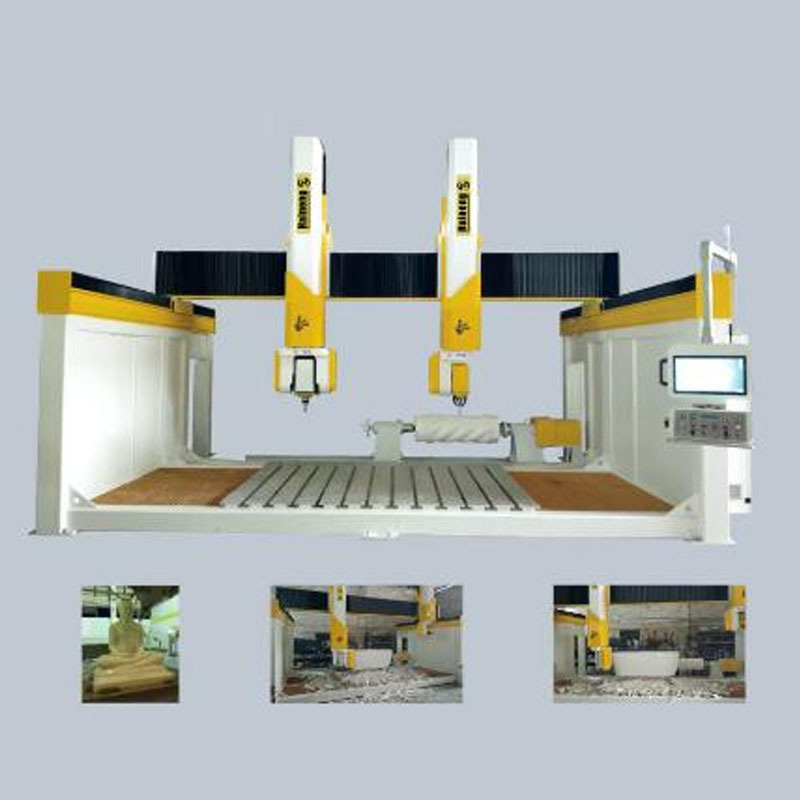

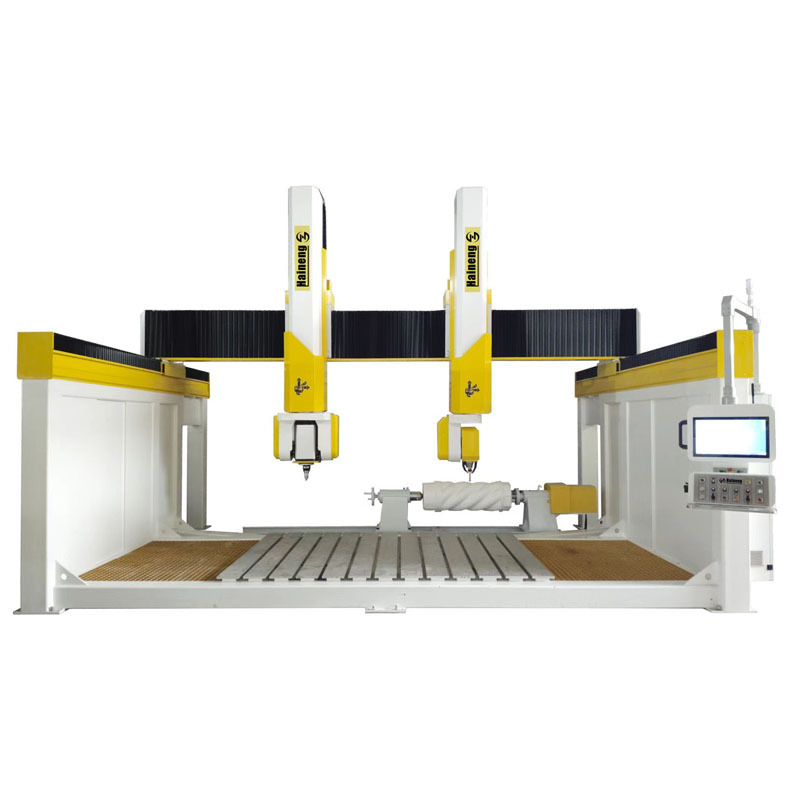

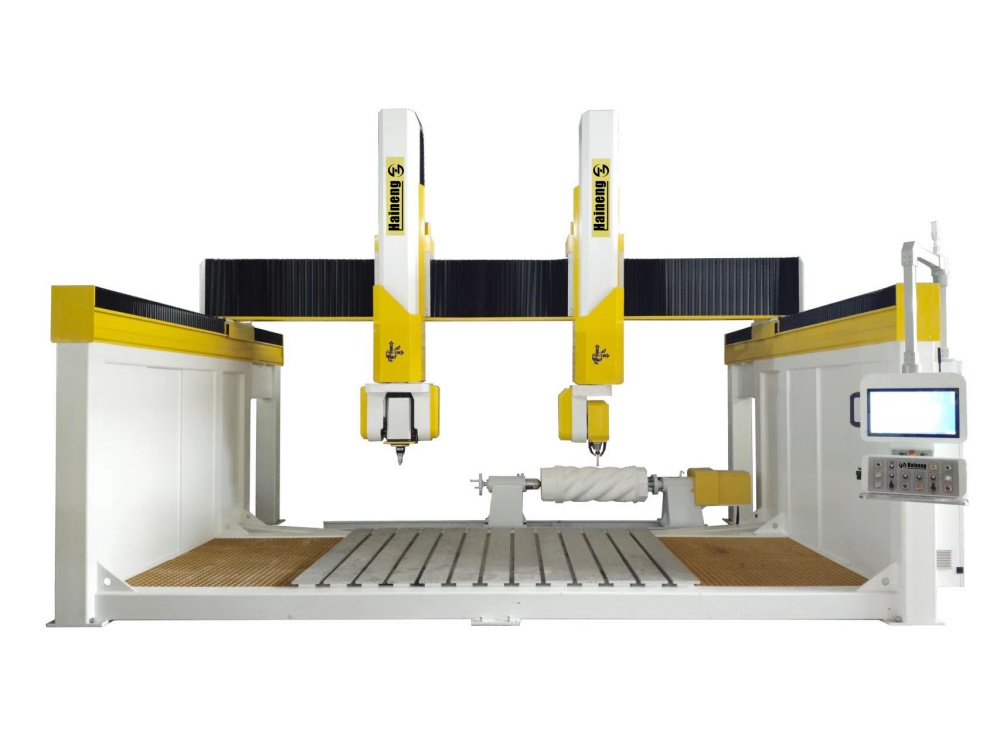

6 Axis Stone CNC Machining Center
This equipment is a double head 6-axis machining center, which combines saw blade cutting and profiling,high-speed 3D three-dimensional carving processing, 6-axis circular carving rotary processing.
Item No. :JY3215-HC6X
- Haineng
- Fujian
- 30 days
- Information
Product Introduction
This equipment is a double head 6-axis machining center, which combines saw blade cutting and profiling,high-speed 3D three-dimensional carving processing, 6-axis circular carving rotary processing. The equipment is compatible with the conventional plate cutting function profiling processing, waterscape, garden shaped processing, high-end villa Roman column head,Fried Dough Twists column and various kinds of stone processing with complex shapes; The equipment can flexibly apply saw blades and carving heads for simultaneous processing, and can also use any single cutting head for processing. it is a new tool launched by Juyi Technology to solve various irregular processing of stone materials with high efficiency and quality, targeting the complex shapes of various medium and large stones.
Technical Parameters
The machine stroke |
| parameter |
X axis stroke | 3500 | |
Y axis stroke | 2500 | |
Z axis stroke | 1500 | |
A axis stroke | 0-180 (automatic) | |
C axis stroke | ±365 | |
cutting thickness | 6700x4200x4800 | |
Spindle power | 25KW (water-cooled) | |
Spindle speed | 0-8000 | |
Spindle type | BT40knife handle | |
Genera l configuration | Spindle power | 7.5KW (water-cooled) |
Spindle speed | 0-24000 | |
Spindle type | ER32clamp handle | |
Saw blade size | 300-700mm | |
Work Platform Type | Fixed platform | |
Work platform size | 3000x2000mm | |
Sucker function | nothing | |
Functional configuration | Knife alignment function | Optional configuration |
Photography function | Optional configuration | |
Total power | 42kw | |
Total mass | ≈9000kg |
Processing
