Four Heads Calibrating Machine

Four Heads Calibrating Machine adopts the structure of portal n type,good rigidity,conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate,make the surface of the stone plate to get a flat.

  • Haineng
  • Fujian
  • 10 PCS Per Month
  • Information

Product Introduction

Four Heads Calibrating Machine adopts the structure of portal n type,good rigidity,conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate,make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.

Four heads calibrating machine


Technical Parameters


Four Heads Calibrating Machine

Type

unit

ANH-4-600

ANH-4-800

Max. cutting width

mm

600

800

Max. cutting thickness

mm

100

100

Speed of conveyor belt

m/min

0.4-3

0.4-3

Power of main motor

kw

11kw/4pcs

15kw/4pcs

Total power

kw

46.23

62.23

Water consumption

m³/h

4

4

Dimension                      (L×W×H)

mm

5270×1080×1880

5570×1590×1880

Total weight

kg

5600

5600

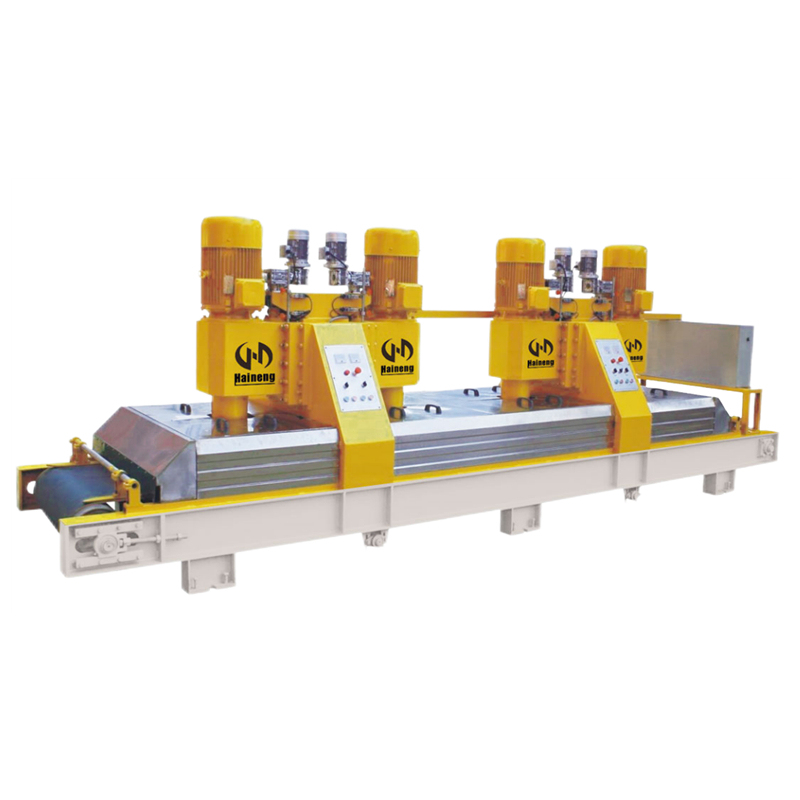

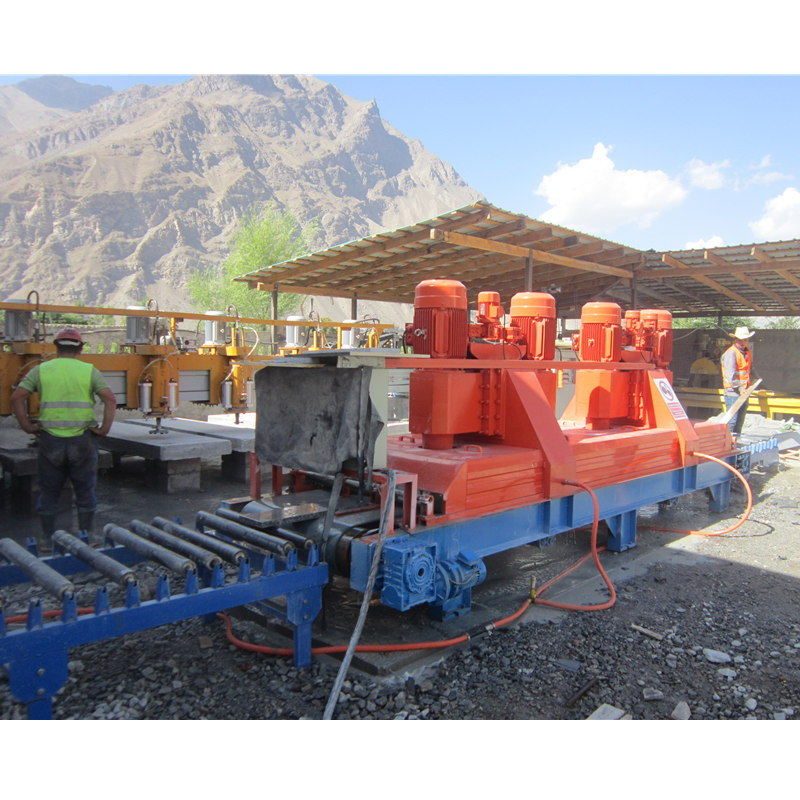

Four heads stone calibrating machine

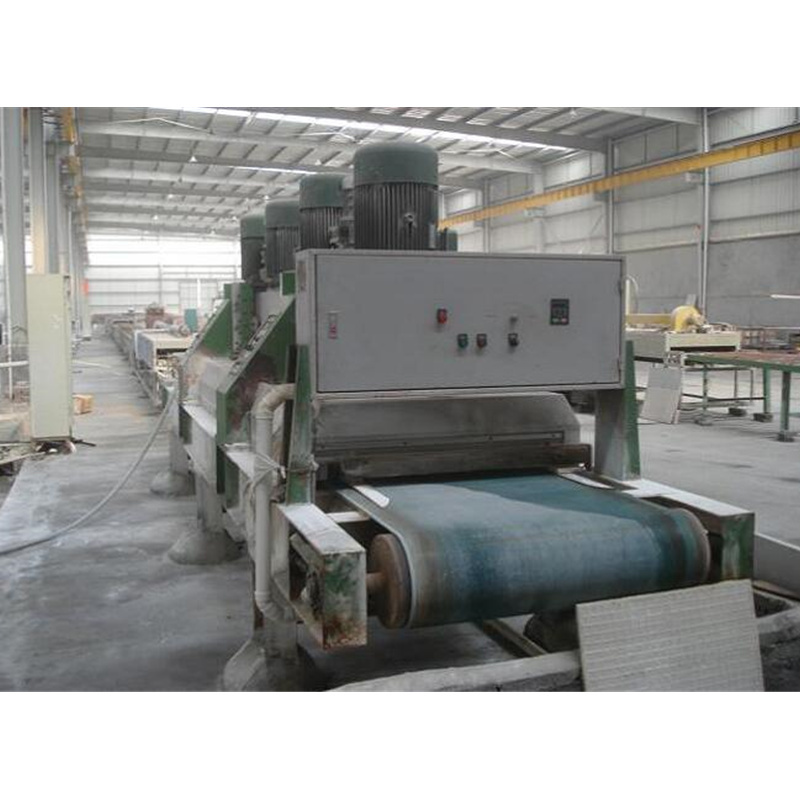

Processing

Stone calibrating machine

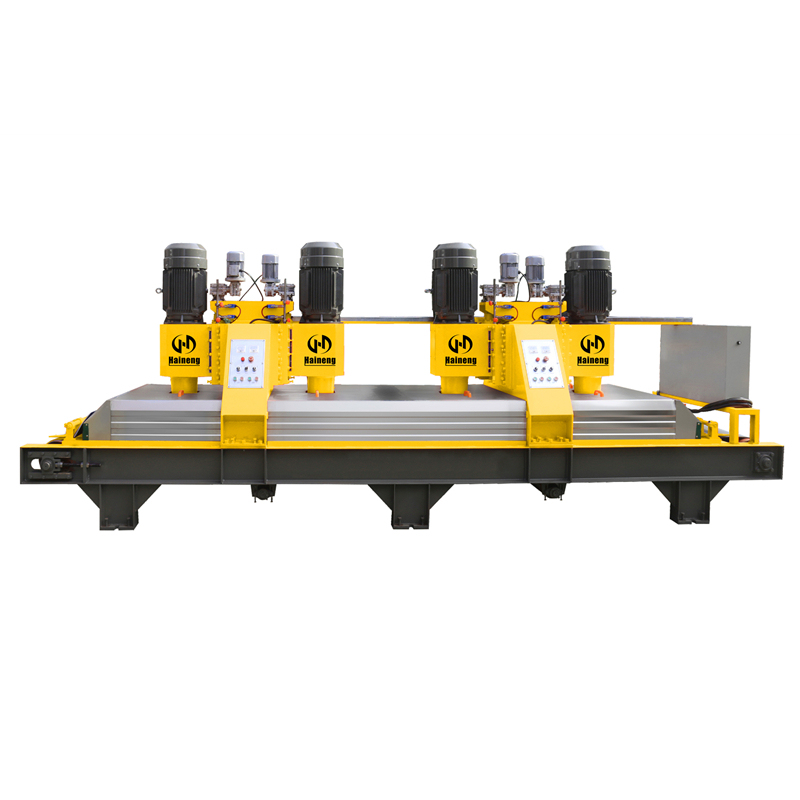

Four heads calibrating machine

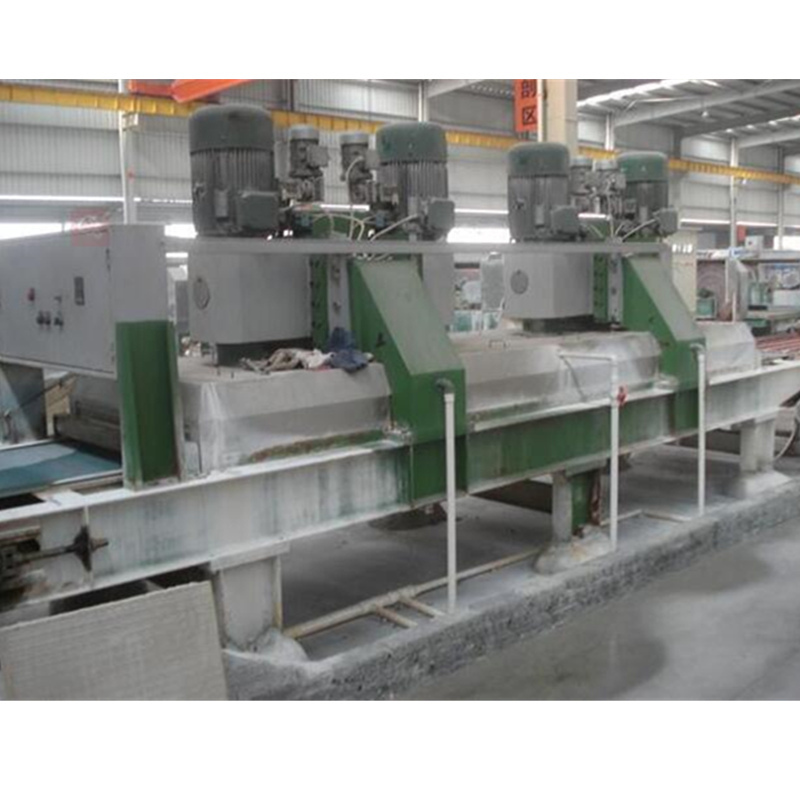

Loading

Four heads stone calibrating machine
