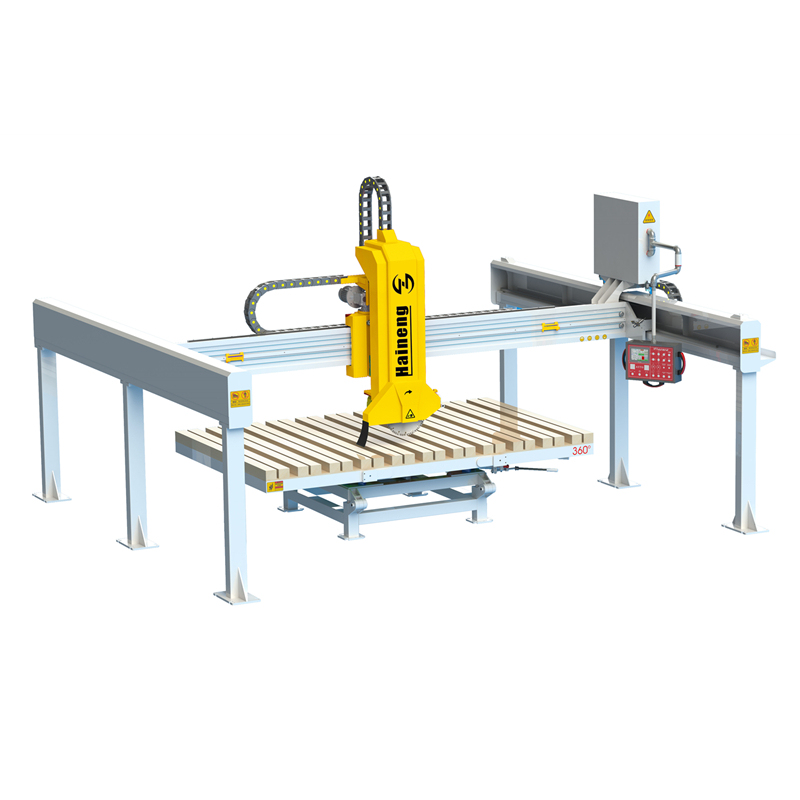

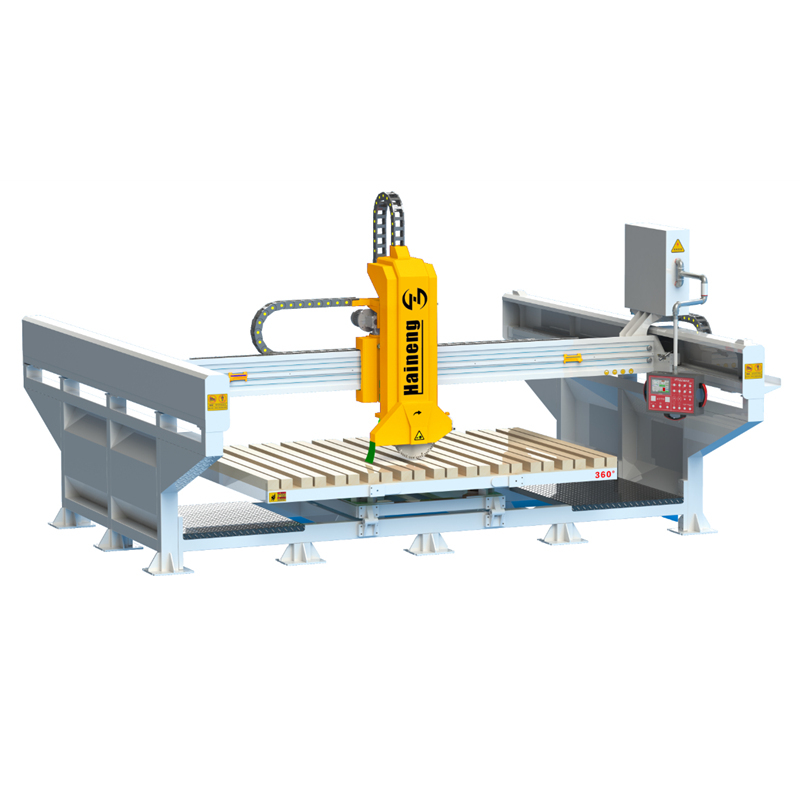

Lightweight Stone Bridge Saw Cutting Machine

This stone brige saw machine is a multi-functional light weight Bridge saw, adopts microcomputer control, touch-type operation interface, and wireless remote control.
Item No.:
HQ450-8A
HQ450-8B

  • Haineng
  • Fujian
  • 30 days
  • 10 PCS Per Month
  • Information

Product Introduction

This stone brige saw adopts microcomputer control, touch-type operation interface, and wireless remote control, making human-machine dialogue flexible and comfortable.

The main control components are all international famous brand components, with rolling rails used in the horizontal and vertical directions, stepless frequency conversion speed regulation for the transverse cutting, and high-precision encoder counting for longitudinal slicing, ensuring the smooth and stable accuracy of the machine's operation.

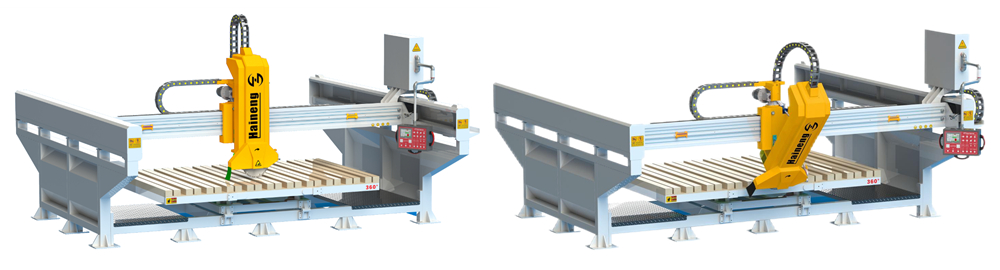

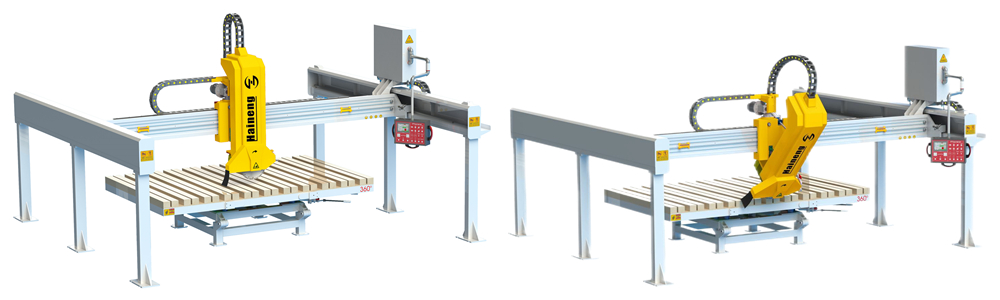

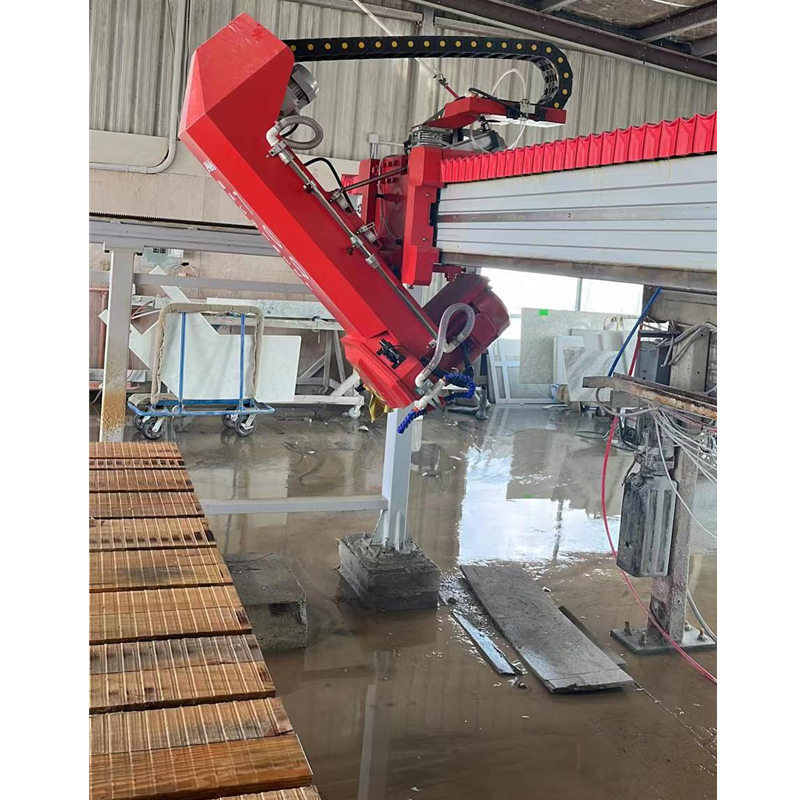

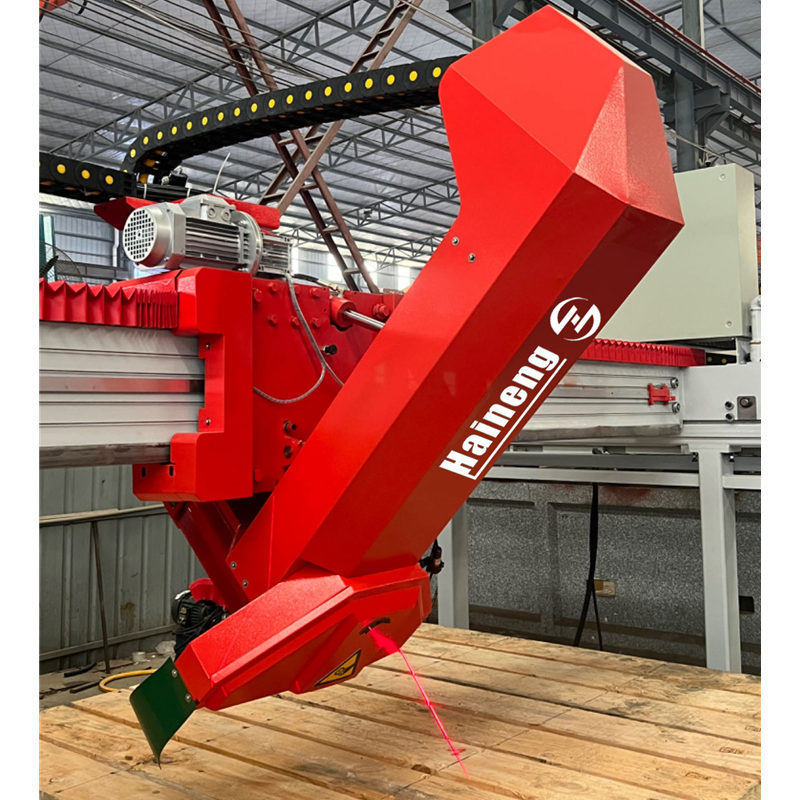

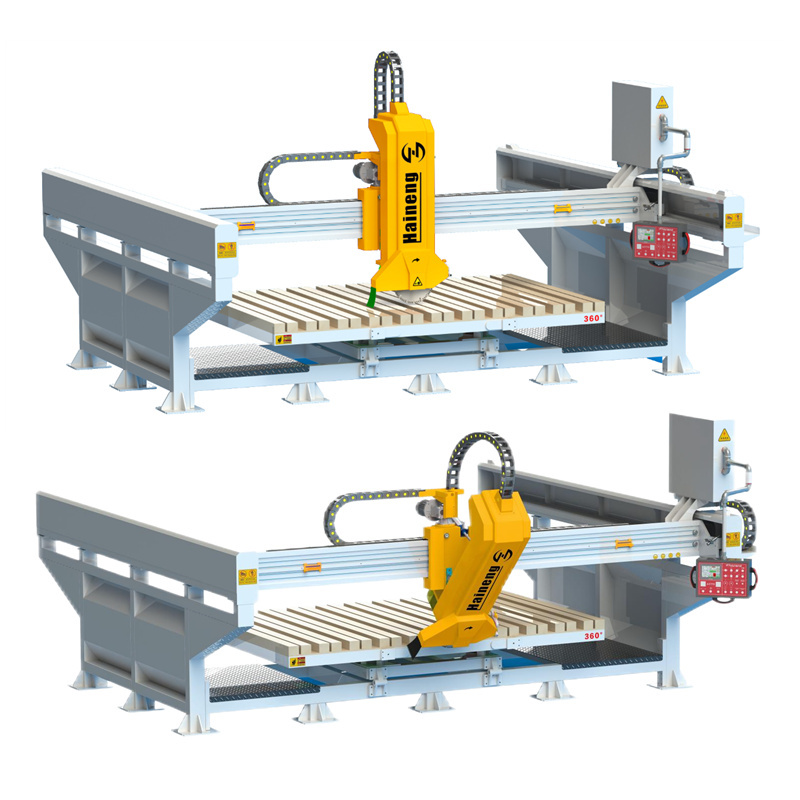

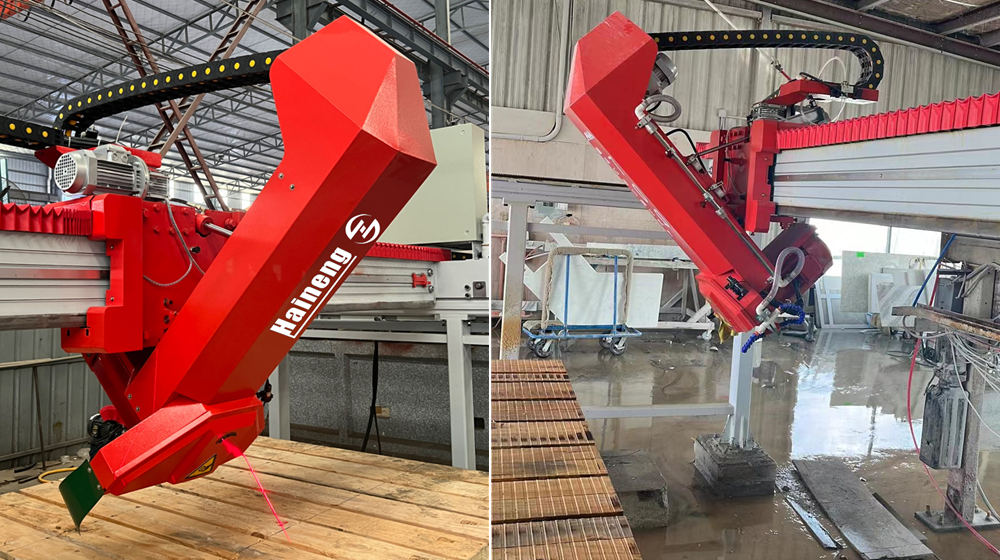

The brige cutting machine head can automatically tilt 45 degrees, and lift the knife along the 45-degree direction. The worktable can be turned 0-85 degrees, rotated 360 degrees and manually positioned every 45 degrees, and can be manually pushed to rotate the worktable 360 degrees at any angle and pneumatically. Brake positioning.

This bridge cutting machine is mainly used in the home decoration industry or for cutting thin plates below 80 mm. It can cut rectangles, arcs, circles, octagons, and inverted small and medium corners.

Stone Bridge Saw

Bridge Cutting Machine

Technical Parameters


Product type

unit

HQ450-8A

Max. Working dimensions(L×W×H)

mm

3200×2000×80

Max. Diameter of blade

mm

350-450

Max. Vertical stroke

mm

250

Head chamfering

n°

0-45

Table dimensions(L×W)

mm

3200×2000

Table tilting degree

n°

0-85

Table rotating degree

n°

0-45-360

Main motor power

kw

11

Total power

kw

16.15

Water consumption

m³/h

4

Overall dimensions(L×W×H)

mm

6000×4800×3300

Weight

kg

4000
